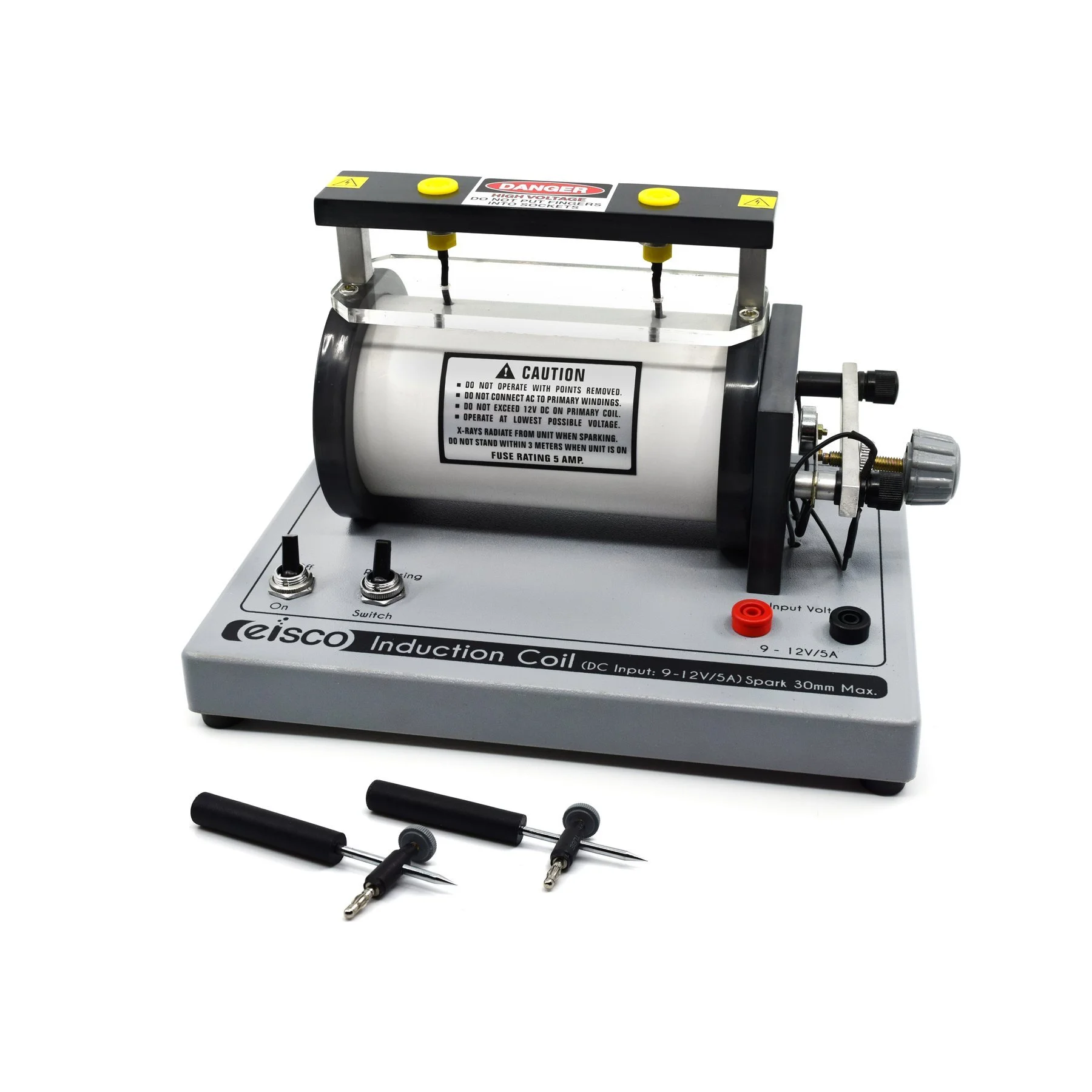

The traditional induction coil capable of producing a spark with an input of 6 to 12 V DC and is therefore ideal for use with vacuum tubes, eudiometers etc. A fully adjustable vibrator system is incorporated and spark suppression capacitors are housed in the base. A pair of pointer electrodes are supplied with the instrument. Pointer electrode have an insulating handle for adjustment of the spark gap. Low voltage input is via a pair of mounted 4 mm Sockets. The Induction Coil has a 30 mm spark gap and can produce pulses of high voltage current.
Measures 6.75" long, 10" wide and 6.5" tall.
Pointer electrodes each measure 5" long.
