Boyle's Law Apparatus - Explore the Relationship Between Pressure and Volume of Gas at Constant Temperatures - Eisco Labs

$197.83
  • Includes a horizontally mounted marked acrylic tube, gas tap, pressure gauge, and a rubber stopper on screw threads.
  • Tube length can be adjusted using the rubber stopper
  • Pressure can be read on the gauge provided. Gas tap attached so gas can be added easily
  • No oil required
  • Perfect for any classroom and useful for a variety of experiments

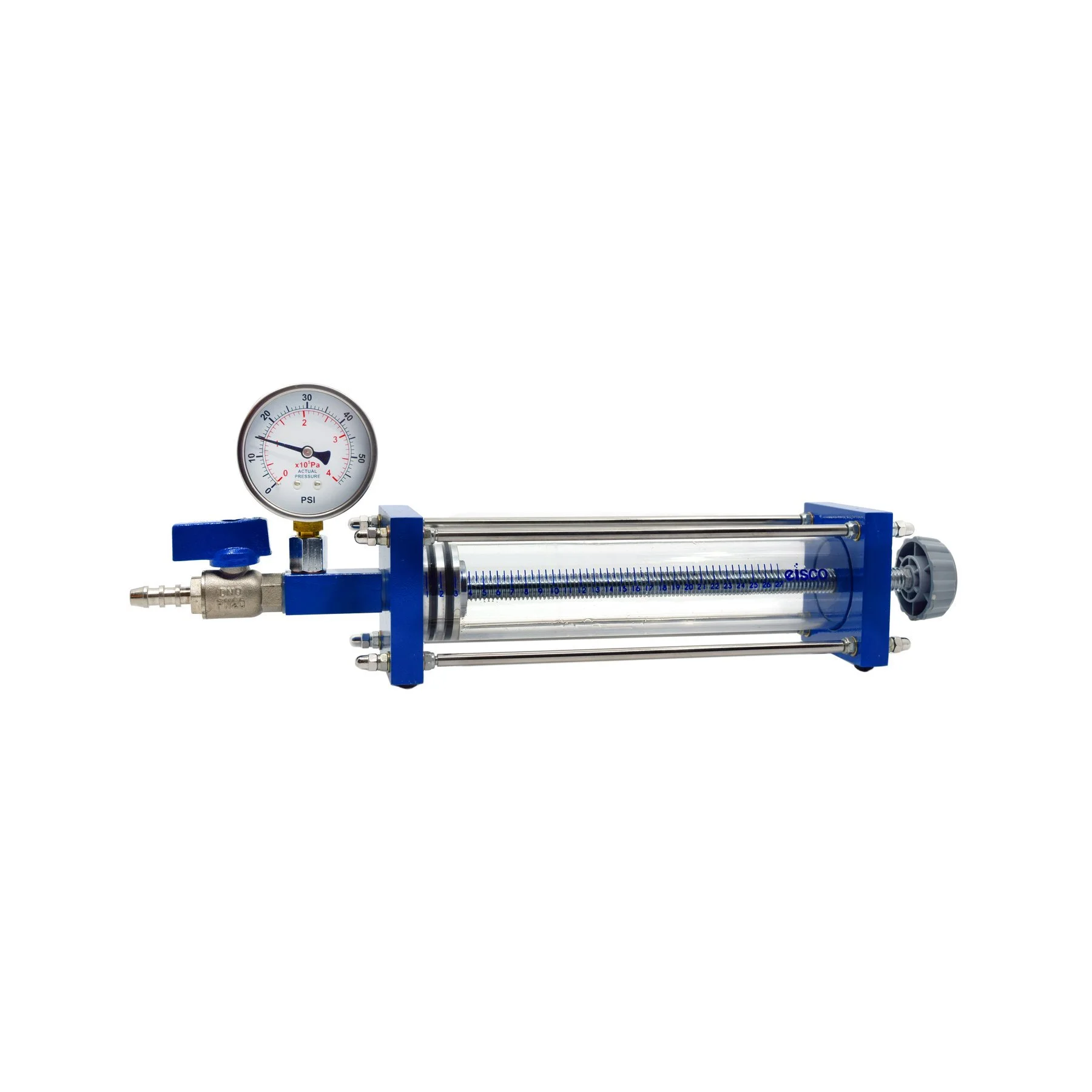

The Boyle's Law apparatus is a well constructed tool consisting of a horizontally mounted, marked acrylic tube, a gas tap, a pressure gauge, and a rubber stopper on screw threads. This clearly labeled unit allows for the study of the relationship between the pressure and volume of a gas held at a constant temperature. Unlike conventional Boyd's Law tools, this apparatus requires no oil, and thus is quite user-friendly.

The primary objective of this apparatus is to determine the relationship between the pressure and volume of a confined gas. The gas we use will be air, and it will be confined in a tube connected to a Gas Pressure Gauge. When the volume of the tube is changed by moving the piston, a change occurs in the pressure exerted by the confined gas. This pressure change will be monitored using a Gas Pressure Gauge. It is assumed that temperature will be constant throughout the experiment. Analyzing the resulting data allows the user to be able to determine what kind of mathematical relationship exists between the pressure and volume of the confined gas.

The entire apparatus measures 16" wide, 3" long and 5.75" tall. Acrylic tube measures 8.25" long with an approximate diameter of 1.75". The pressure gauge measures 2.5" in diameter and is 1.25" thick.
