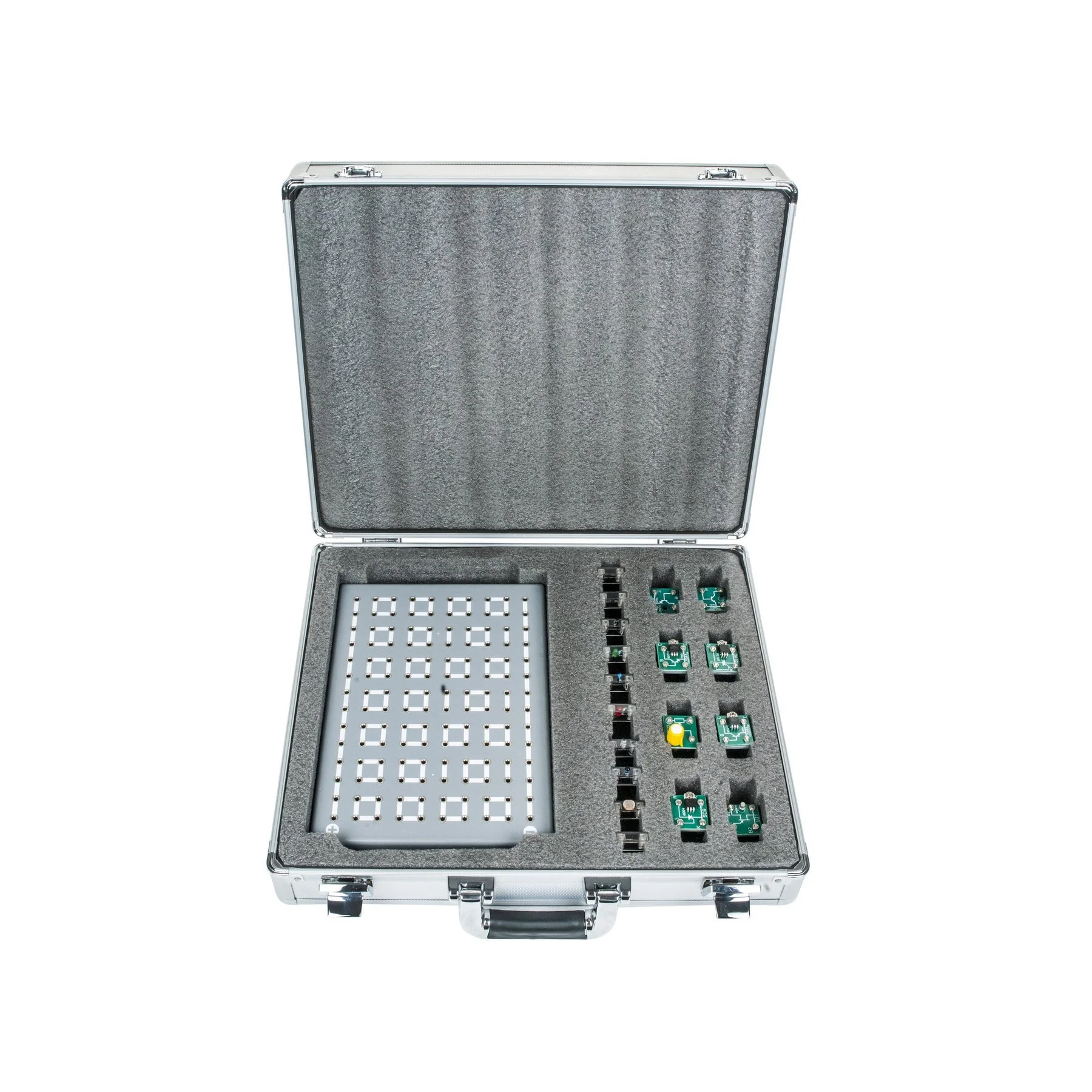

The Electronics System 1 Physics Kit comes with 18 components, including a Circuit Board, and all the Diodes and transistors one needs to investigate core concepts in introductory semiconductor electronics. With this kit students can explore common experiments such as The Half-Wave Rectifier, Measuring Gain with a Power Transistor, The Infrared Diode and Phototransistor, and The Unijunction Transistor. Includes an Experiment Guide covering 12 activities: The Forward Bias Diode The Half-Wave Rectifier The Zener Diode The Transistor as a Switch Measuring Gain with a PNP Power Transistor The Infrared Diode and Phototransistor The Light Dependent Resistor Temperature Dependent Resistors The Silicon Controlled Rectifier The TRIAC The Unijunction Transistor
